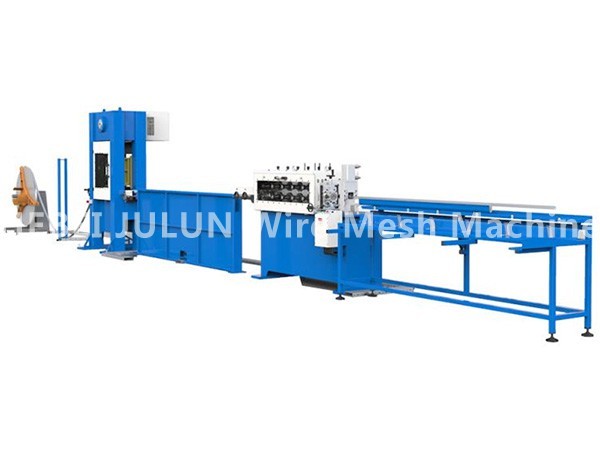

Angle Bead Machine Line

Corner beads machine production line; Corner bead making machine

Description of angle bead machine:

Angle bead production line is used to produce the angle bead which is mainly used to protect the angle of the wall.

Parameter:

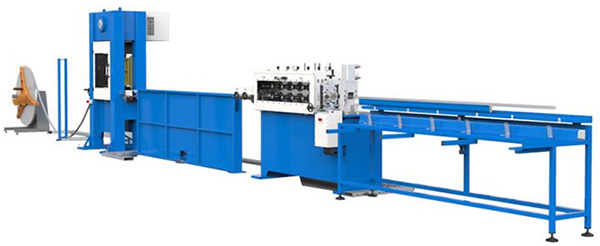

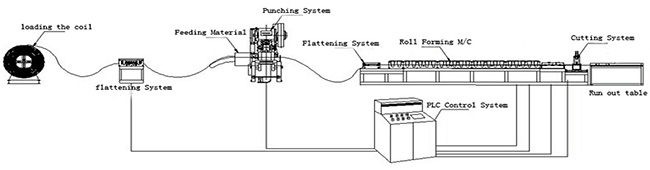

Seen on the picture, the “V” type angle bead production line consists of five parts: uncoiler, angle bead machine, electric control cabinet, roller profiling machine and collecting table

Maximum inner diameter: 480mm, can be adjustable

Loading weight: 1000Kgs
Max. strip width: 150mm
Total motor power: 9.5kw
Punching press: 15Tons
Mesh opening size: 25*10mm, according to the draw
Flange size: 30*30mm, 50*50mm, 70*70mm or according to the draw
Strand width: 1.5mm
Material thickness: 0.3-0.7mm
Production speed: 300 strokes/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length : 3,000mm

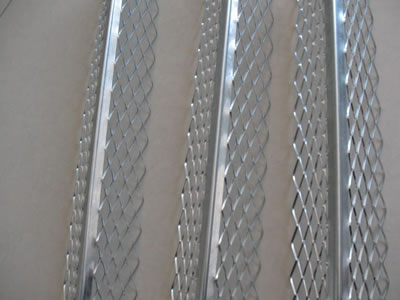

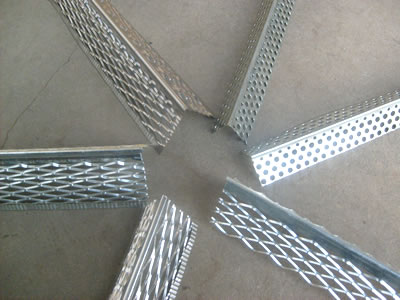

The finished products (angle bead)
